Wire holder and spool - 3D design and print using FreeCAD

Tidy your wires using FreeCAD and a 3D printer

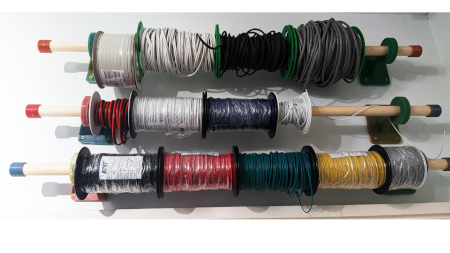

I've created brackets and a spool for mounting reels of electronic wires to my wall. This has been designed in FreeCAD and then 3D printed. It uses an 18mm diameter wooden dowell.

This is explained in the video below.

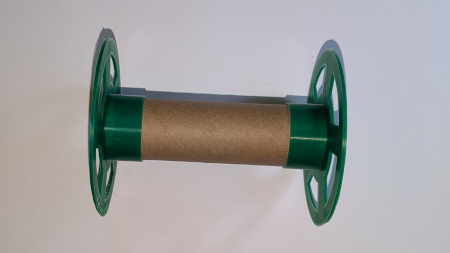

I originally designed the mount for existing spools, but I also created a spool holder as well. It uses a cardboard tube with 3D printed ends.

Download Files

The files can be downloaded from my Thingiverse collection.

• Wire reel mount on Thingiverse
